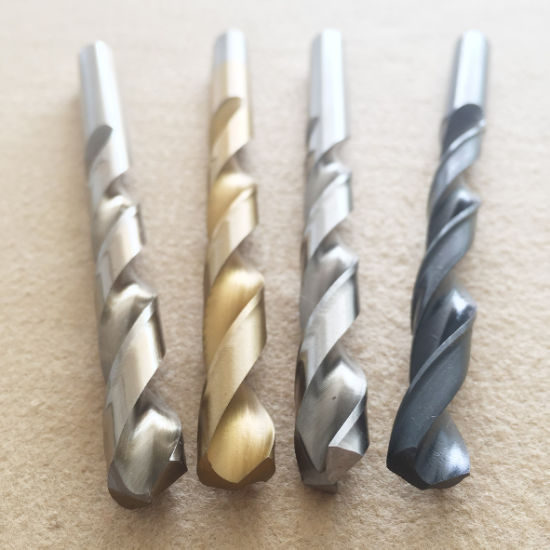

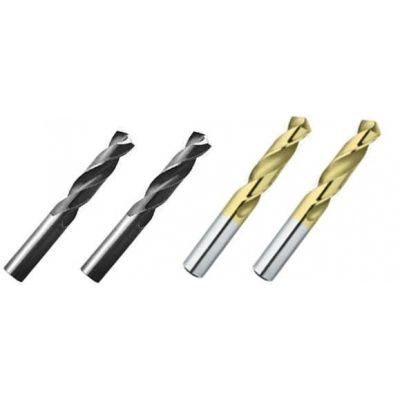

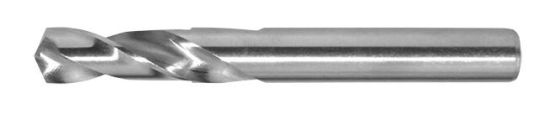

135 Split Point HSS Straight Shank Twist Drill -DIN1869

  • 300 Pieces

  • Shanghai, China

  • 50, 000, 000PCS/Month

  • L/C, T/T, D/P

  • Round

  • New

  • Customized

  • Fully Ground

  • HSS or HSS Co

  • Tin, Rainbow and Bright etc

  • 118 and 135 Split Point

  • INGLAU

  • as Requested

  • Crafted by Inglau Tools

  • 82975090

  • Rotary Hammer Drill

  • Hammer Drill

  • Building and Industrial

  • Canines Style

  • 3mm~13mm, 3MM~13MM

  • Impact Drill

HSS Straight Shank Twist Drill -DIN338

D Diameter

L1 Overall Length

L2 Flute Length
135 Split Point HSS Straight Shank Twist Drill -DIN1869
DIN1869-1 DIN1869-2 DIN1869-3
D L1 L2 D L1 L2 D L1 L2
2.00 125 85 2.00 160 110 2.00 200 135
2.50 140 95 2.50 180 120 2.50 225 150
3.00 150 100 3.00 190 130 3.00 240 160
3.50 165 115 3.50 210 145 3.50 265 180
4.00 175 120 4.00 220 150 4.00 280 190
4.50 185 125 4.50 235 160 4.50 295 200
5.00 195 135 5.00 245 179 5.00 315 210
5.50 205 140 5.50 260 180 5.50 330 225
6.00 205 140 6.00 260 180 6.00 330 225
6.50 215 150 6.50 275 190 6.50 350 235
7.00 225 155 7.00 290 200 7.00 370 250
7.50 225 155 7.50 290 200 7.50 370 250
8.00 240 165 8.00 305 210 8.00 390 265
8.50 240 165 8.50 305 210 8.50 390 265
9.00 250 175 9.00 320 220 9.00 410 280
9.50 250 175 9.50 320 220 9.50 410 280
10.00 265 185 10.00 340 235 10.00 430 295
10.50 265 185 10.50 340 235 10.50 430 295
11.00 280 195 11.00 365 250 11.00 455 310
11.50 280 195 11.50 365 250 11.50 455 310
12.00 295 205 12.00 375 260 12.00 480 330
12.50 295 205 12.50 375 260 12.50 480 330
13.00 295 205 13.00 375 260 13.00 480 330
