Product Description

Product Overview

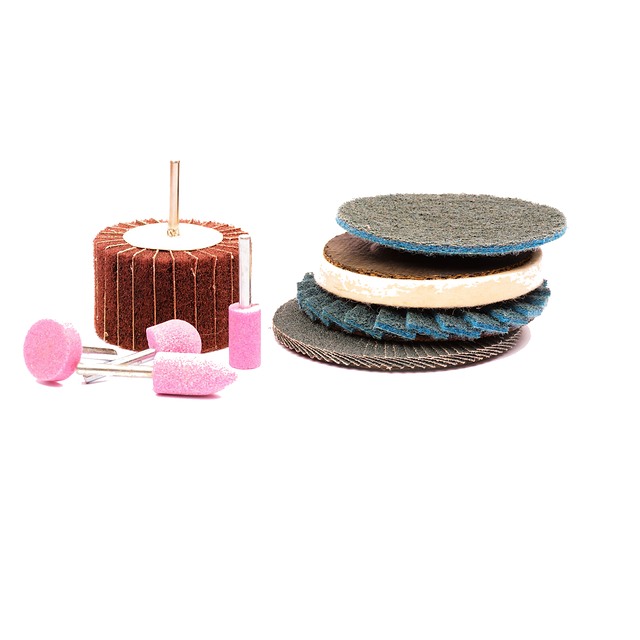

The GC Abrasives 2" x 1" Aluminum Oxide Interleaved Flap Wheel – 80 Grit is designed for professional metalworking applications requiring an effective combination of material removal, blending and surface refinement.

The wheel features alternating layers of 80-grit aluminum oxide coated abrasive cloth and flexible non-woven abrasive material. This interleaved construction combines the cutting performance of coated abrasives with the controlled surface-conditioning action of non-woven material.

During operation, the abrasive cloth flaps help remove scratches, machining marks, light oxidation and minor surface imperfections, while the non-woven flaps simultaneously blend the abrasive pattern and refine the workpiece surface. This combination makes it possible to perform cutting, blending and finishing in a single operation.

The flexible radial flap design conforms to curves, edges, contours and irregular geometries, making the wheel particularly effective where rigid abrasive products may provide excessive cutting action or limited surface contact.

The compact 2" diameter provides excellent maneuverability, while the 1" face width offers practical working coverage. An integrated 1/4" shank allows convenient mounting on compatible die grinders, straight grinders and other suitable rotary tools.

With a maximum operating speed of 11,000 RPM, the wheel is designed for controlled professional surface-finishing operations.

Technical Data

Safety: Do not exceed 11,000 RPM. Always use the abrasive wheel with compatible equipment and appropriate personal protective equipment.

Key Features

Aluminum Oxide Abrasive

Durable aluminum oxide abrasive provides reliable cutting action for general-purpose metalworking and surface-finishing applications.

80 Grit Medium Cutting Action

The 80-grit specification provides a balanced combination of material removal and surface refinement, making it suitable for intermediate finishing operations.

Interleaved Abrasive Construction

Alternating abrasive cloth and non-woven flaps combine cutting and surface conditioning within a single wheel.

Cut, Blend & Finish

The abrasive cloth removes surface imperfections while the non-woven material simultaneously blends and refines the resulting abrasive pattern.

Flexible & Conformable

Individual flaps conform effectively to curves, edges, profiles, tubing and irregular workpiece geometries.

Controlled Material Removal

Provides more cutting action than an all-non-woven finishing wheel while maintaining greater finishing control than aggressive grinding products.

Compact 2" Diameter

Provides excellent maneuverability for small components, detailed work and areas where larger abrasive wheels are difficult to use.

Integrated 1/4" Shank

The straight shank provides convenient installation on compatible portable rotary tools without requiring a separate arbor.

Consistent Surface Finish

The combined abrasive action helps blend scratches and processing marks into a more uniform surface appearance.

11,000 RPM Maximum Speed

Designed for operation at speeds up to 11,000 RPM when properly mounted and used according to applicable safety instructions.

Applications

Weld Blending

Blends weld areas and surrounding grinding marks while simultaneously refining the workpiece surface.

Scratch Removal & Blending

Helps remove and blend machining marks, abrasive scratches and minor surface imperfections.

Light Deburring

Removes light burrs and refines component edges without the aggressive stock removal associated with rigid grinding products.

Rust & Oxidation Removal

Suitable for removing light rust, oxidation and surface contamination from metal components.

Surface Conditioning

Provides controlled conditioning of fabricated and machined metal surfaces.

Stainless Steel Finishing

Suitable for blending fabrication marks and refining stainless steel surfaces after welding, machining or grinding.

Surface Preparation

Prepares metal surfaces before painting, coating, bonding, polishing or subsequent finishing operations.

Edge & Contour Finishing

The flexible flap construction conforms to edges, curved components, profiles, tubing and irregular geometries.

Small & Hard-to-Reach Areas

The compact 2" diameter makes the wheel particularly useful for detailed finishing and confined working areas.

Why Choose GC Abrasives?

Professional Abrasive Manufacturer

GC Abrasives specializes in bonded, coated and non-woven abrasive solutions for professional metalworking and industrial surface-finishing applications.

Combination Abrasive Technology

Our interleaved flap wheels combine coated abrasive cloth with flexible non-woven material, providing an effective balance of cutting, blending and finishing.

Consistent Manufacturing Quality

Controlled production helps maintain consistent wheel dimensions, flap arrangement, abrasive distribution and performance from batch to batch.

Complete Interleaved Flap Wheel Range

GC Abrasives offers multiple wheel diameters, face widths, shank sizes, abrasive grits and flap configurations for different surface-finishing requirements.

Application-Oriented Solutions

Different combinations of abrasive cloth grit and non-woven material can be selected according to the required balance between material removal and final surface quality.

Custom Manufacturing

Wheel diameter, face width, shank size, abrasive grit, non-woven grade and flap configuration can be customized according to customer requirements.

OEM & Private Label Solutions

GC Abrasives supports distributors, importers and industrial abrasive brands with OEM manufacturing, private labeling, customized packaging and product development.

Global B2B Supply

Professional abrasive products and customized finishing solutions are available for international distributors and industrial customers.
