EN-04-061
GC ABRASIVES

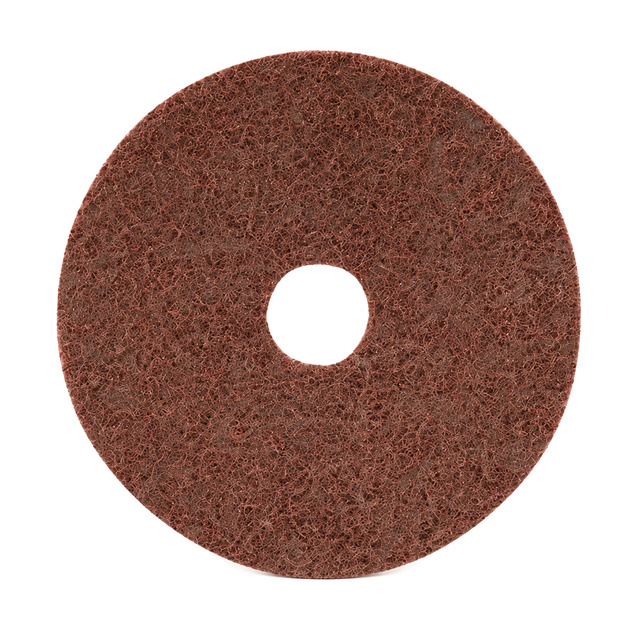

This Medium Surface Conditioning Center Hole Hook & Loop Disc combines abrasive mineral with a flexible, open non-woven web. It is intended for low- to medium-pressure operations such as surface cleaning, scratch blending, light deburring, oxidation removal and preparation before painting, coating or welding.
The open-web construction allows air to circulate through the disc and helps reduce loading during use. Its flexible structure follows irregular and contoured surfaces, providing a more consistent finish without aggressively changing the geometry of the workpiece.
Medium grade for balanced cutting and finishing
Flexible non-woven nylon abrasive construction
Hook-and-loop backing for fast attachment and replacement
22.23 mm (7/8 in) center hole for alignment
Open-web structure helps resist loading
Conforms to flat, curved and contoured surfaces
Produces a uniform, repeatable finish
Helps reduce gouging and excessive stock removal
Suitable for low- to medium-pressure applications
Available in multiple metric and imperial diameters
Surface cleaning and preparation
Light rust and oxidation removal
Scratch and tool-mark blending
Light deburring
Weld discoloration cleaning
Paint and coating removal
Adhesive-residue removal
Preparing metal before painting or coating
Producing satin and brushed finishes
General metal maintenance and repair
Stainless steel
Mild steel
Carbon steel
Aluminum
Nickel alloys
Titanium
Copper
Brass
Other ferrous and non-ferrous metals
| Item | Metric Diameter | Nominal Imperial Size | Center Hole | Grade | Suggested Catalog Max. RPM* |
|---|---|---|---|---|---|
| 1 | 50 mm | 2 in | 22.23 mm / 7/8 in | Medium | 23,000 RPM |
| 2 | 76 mm | 3 in | 22.23 mm / 7/8 in | Medium | 20,000 RPM |
| 3 | 100 mm | 4 in | 22.23 mm / 7/8 in | Medium | 13,000 RPM |
| 4 | 115 mm | 4.5 in | 22.23 mm / 7/8 in | Medium | 13,000 RPM |
| 5 | 125 mm | 5 in | 22.23 mm / 7/8 in | Medium | 10,000 RPM |
| 6 | 150 mm | 6 in | 22.23 mm / 7/8 in | Medium | 8,000 RPM |
| 7 | 180 mm | 7 in | 22.23 mm / 7/8 in | Medium | 6,000 RPM |
| 8 | 230 mm | Approx. 9 in | 22.23 mm / 7/8 in | Medium | 6,000 RPM* |
| Specification | Description |
|---|---|
| Product Type | Surface Conditioning Disc |
| Construction | Non-woven nylon abrasive web |
| Abrasive Grade | Medium / MED |
| Typical Color | Maroon |
| Abrasive Mineral | Aluminum Oxide |
| Attachment System | Hook & Loop |
| Center Hole Diameter | 22.23 mm / 7/8 in |
| Available Diameters | 50, 76, 100, 115, 125, 150, 180 and 230 mm |
| Available Inch Sizes | 2, 3, 4, 4.5, 5, 6, 7 and approximately 9 in |
| Operating Pressure | Low to Medium |
| Main Functions | Cleaning, blending, light deburring and finishing |
| Suitable Surfaces | Flat, curved and contoured surfaces |
| Compatible Equipment | Angle grinder, orbital sander or finishing tool with a compatible backup pad |
| Workpiece Materials | Stainless steel, mild steel, aluminum, nickel alloys, titanium, copper and brass |
| Customization | Size, grade, color, center hole, backing, labeling and packaging |
| Application Type | Industrial and professional use |
