Abrasive Thousand Flap Wheel Aluminium-Oxide

  • 500 Pieces

  • Shanghai, China

  • 50, 000, 000PCS/Month

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • 4x1xH

  • Water Resistance

  • INGLAU

  • as Requested

  • 4x1xH

  • China

  • 68042210

  • Paper&Cloth

  • Medium

  • Machine Tool

  • Alumina

  • Resin Adhesive

  • Soft

Abrasive Thousand Flap Wheel Aluminium-Oxide

Flap Wheels

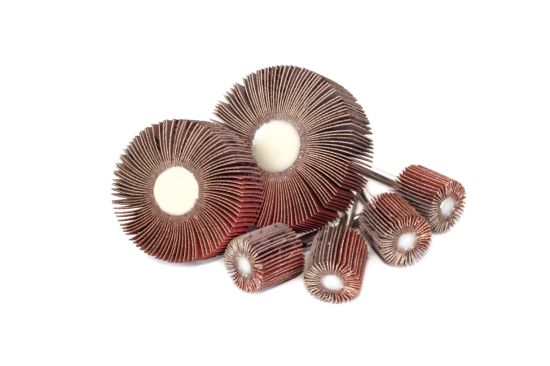

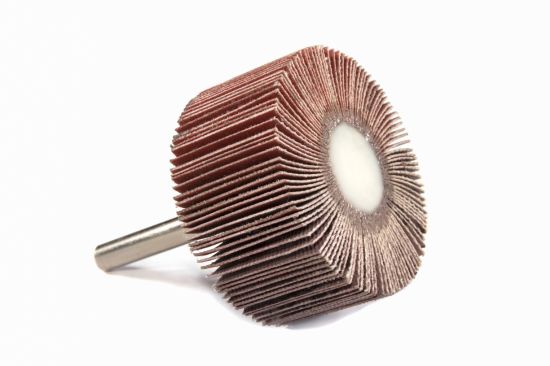

Aluminium Oxide flap wheels on 6mm shaft
Description: Aluminium oxide flaps and X-Flex weight backing. 6-mm diameter cylindrical shaft.
Main features and benefits: These wheels are our most versatile RG tools. Robust and suitable for numerous applications on work surfaces of various kinds. Excellent flexibility.
Recommended applications: Finishing, light deburring, cleaning or preparation for subsequent treatments (chromium plating, nickel plating or painting) on small or hard-to-reach surfaces such as the internal surfaces of pipes, cylinders, parts of irregular shape.
Work surfaces: Stainless steel, standard steel, alloyed steel, aluminium, titanium, nonferrous materials and alloys, plastic materials, glass fibre, rubber, marble, stone, concrete, wood, hide or leather
SKU# Diameter
mm
Thickness mm Shank
mm
Grit
#60
Grit
#80
Grit
#100
Grit
#120
Grit
#150
Grit
#180
Max.
Speed
Qty
per pack
Qty
per Carton
20 10 6 38,000 10 200
20 13 6 38,000 10 200
20 15 6 38,000 10 200
20 20 6 38,000 10 200
20 25 6 38,000 10 200
20 40 6 38,000 10 200
20 50 6 38,000 10 200
25 10 6 38,000 10 200
25 13 6 38,000 10 200
25 15 6 38,000 10 200
25 25 6 38,000 10 200
25 40 6 38,000 10 200
25 50 6 38,000 10 200
30 15 6 31,800 10 200
30 20 6 31,800 10 200
30 25 6 31,800 10 200
30 30 6 31,800 10 200
40 10 6 23,800 10 200
40 13 6 23,800 10 200
40 15 6 23,800 10 200
40 20 6 23,800 10 200
40 25 6 23,800 10 200
40 30 6 23,800 10 200
40 40 6 23,800 10 200
40 50 6 23,800 10 200
50 10 6 19,000 10 200
50 13 6 19,000 10 200
50 15 6 19,000 10 200
50 20 6 19,000 10 200
50 25 6 19,000 10 200
50 30 6 19,000 10 200
50 40 6 19,000 10 200
50 50 6 19,000 10 200
60 13 6 16,100 10 200
60 15 6 16,100 10 200
60 20 6 16,100 10 200
60 25 6 16,100 10 200
60 30 6 16,100 10 200
60 40 6 16,100 10 200
60 50 6 16,100 10 200
76 13 6 11,800 10 200
76 15 6 11,800 10 200
76 20 6 11,800 10 200
76 25 6 11,800 10 200
76 30 6 11,800 10 200
76 40 6 11,800 10 200
76 50 6 11,800 10 200

Aluminium Oxide on 3mm shaft
Abrasive Materials: Refined aluminium oxide grain / X-wt. flexible cotton cloth
Mounted Type: Straight steel shank
Application: Finishing, light - deburring, cleaning, preparation on hard to reach surfaces.
Workpiece: Stainless steel, alloyed steel, NF-metal, aluminium, titanium, plastic, stone.
Performance: Aggressive grinding result, high flexible, consistent flap wear off, adapt to irregular shapes.
SKU# Diameter
mm
Thickness mm Shank
mm
Grit
#60
Grit
#80
Grit
#100
Grit
#120
Grit
#150
Grit
#180
Max.
Speed
Qty
per pack
Qty
per Carton
10 10 3 38,000 10 200
10 15 3 38000 10 200
15 6 3 38,000 10 200
15 10 3 38,000 10 200
15 13 3 38000 10 200
15 15 3 38,000 10 200
15 20 3 38,000 10 200
15 25 3 38000 10 200
15 40 3 38,000 10 200
15 50 3 38,000 10 200
20 6 3 38000 10 200
20 10 3 38,000 10 200
20 15 3 38000 10 200
20 20 3 38,000 10 200
20 25 3 38,000 10 200
20 40 3 38000 10 200
20 50 3 38,000 10 200
25 10 3 38,000 10 200
25 15 3 38,000 10 200
25 20 3 38000 10 200
25 25 3 38,000 10 200
25 40 3 38000 10 200
25 50 3 38,000 10 200
30 6 3 38,000 10 200
30 10 3 38000 10 200
30 15 3 38,000 10 200

Aluminium Oxide flap wheels on threaded shaft
Description: Aluminium oxide flaps and X-Flex weight backing ¼-20 UNC shaft thread.
Main features and benefits: Being quick to change, our RG flap wheels on threaded shaft can be ideally used in robotized applications or intensive production lines. In addition to this, it is extremely easy to switch over to a new grit on the same tool by manually unscrewing the wheel.
Recommended applications: Finishing small parts, moulds, alloy wheels, robotized applications.
Work surfaces: Stainless steel, standard steel, alloyed steel, aluminium, titanium, nonferrous materials and alloys, plastic materials, glass fibre, rubber, marble.
SKU# Diameter
mm
Thickness mm Shank
mm
Grit
#60
Grit
#80
Grit
#100
Grit
#120
Grit
#150
Grit
#180
Max.
Speed
Qty
per pack
Qty
per Carton
25 15 TH 38,200 10 200
25 25 TH 38,200 10 200
30 10 TH 31,200 10 200
40 13 TH 23,800 10 200
40 25 TH 23,800 10 200
50 13 TH 19,000 10 200
50 20 TH 19,000 10 200
50 25 TH 19,000 10 200
60 13 TH 16,100 10 200
60 25 TH 16,100 10 200
76 13 TH 11,800 10 200
76 20 TH 11,800 10 200
76 25 TH 11,800 10 200

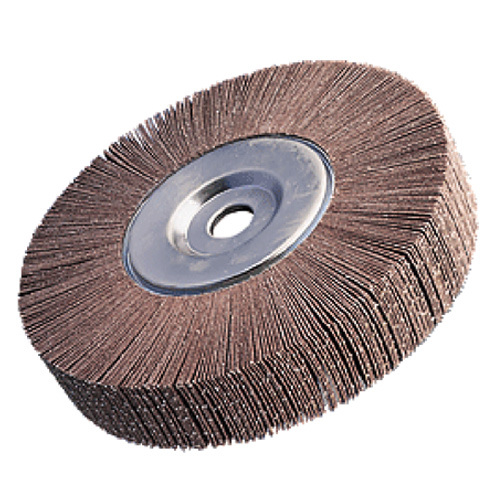

Aluminium Oxide Flap Wheels on Flanges
Description: Aluminium Oxide flaps and X-Flex weight backing. The central wooden hub has a hole allowing it to be fitted on threaded conical shafts.
Main features and benefits: Threaded shafts allow you to fit and remove very quickly while reducing balance control.
Recommended applications: Finishing wide flat, concave and convex surfaces; grinding the internal and outer surfaces of tanks, containers and pipes; finishing parts of irregular shape.
Work surfaces: Stainless steel, standard steel, alloyed steel, nonferrous materials and alloys.
SKU# Diameter
(mm)
Thickness
mm
Shank
mm
Grit
#40
Grit
#60
Grit
#80
Grit
#120
Grit
#150
Grit
#180
Grit
#240
Grit
#320
Max.
Speed
Qty
per pack
Qty
per Carton
100 25 16 8,800 10
100 25 25 8,800 10
100 30 25 8,800 10
100 50 16 8,800 10
100 50 25 5,700 10
150 25 25 5,700 10
150 30 25 5,700 10
150 40 25 5,700 10
150 50 25 5,200 10
165 25 25 5,200 10
165 30 25 5,200 10
165 40 25 5,200 10
165 50 25 5,200 10
165 25 30 5,200 10
165 30 30 5,200 10
165 50 30 5,200 10
165 25 45 5,200 10
165 30 45 5,200 10
165 50 45 5,200 10
165 25 54 5,200 10
165 30 54 5,200 10
165 50 54 5,200 10
200 25 30 4,300 10
200 30 30 4,300 10
200 50 30 4,300 10
200 25 45 4,300 10
200 30 45 4,300 10
200 50 45 4,300 10
200 25 54 4,300 10
200 30 54 4,300 10
200 50 54 4,300 10
250 50 45 3,400 10
250 25 100 3,400 10
250 30 100 3,400 10
250 50 100 3,400 10
300 30 100 2,850 10
300 50 100 2,850 10
300 75 100 2,850 10
350 30 132 2,250 10
350 50 132 2,250 10
350 60 132 2,250 10
350 75 132 2,250 10
350 100 132 2,250 10
410 30 152 2,080 10
410 50 152 2,080 10
410 60 152 2,080 10
410 75 152 2,080 10
410 100 152 2,080 10
