SEGMENT TYPE (DRY)
This type of blades is a quality product at a competitive price. It is suitable for general purpose
cutting: building materials, granite, marble, concrete, concrete reinforced with steel engineering bricks. roof tiles and various other masonry products.
| Outer | Outer | Segment | Segment |
| Diameter(mm) | Diameter(mm) | Thickness(mm) | Height(mm) |
| 4" | 105 | 1.8 | 7/8/10 |
| 4.3" | 110 | 1.8 | 7/8/10 |
| 4.5" | 115 | 1.8 | 7/8/10 |
| 5" | 125 | 2.0 | 7/8/10 |
| 6" | 150 | 2.2 | 7/8/10 |
| 7" | 180 | 2.2 | 7/8/10 |
| 8" | 200 | 2.4 | 7/10/12 |
| 9" | 230 | 2.4 | 7/10/12 |
| 10" | 250 | 2.8 | 7/10/12 |
| 12" | 300 | 3.0 | 7/8/10/12 |
| 14" | 350 | 3.2 | 7/8/10/12 |
| 16" | 400 | 3.4 | 7/8/10/12 |
CONTINUOUS RIM(WET) This type of blades is a quality product at a competitive price. It is suitable for general purpose cutting: building materials, granite, marble, concrete, concrete reinforced with steel engineering bricks. roof tiles and various other masonry products. | Outer | Outer | Segment | Segment |
| Diameter(mm) | Diameter(mm) | Thickness(mm) | Height(mm) |
| 4" | 105 | 1.8 | 7/8/10 |
| 4.3" | 110 | 1.8 | 7/8/10 |
| 4.5" | 115 | 1.8 | 7/8/10 |
| 5" | 125 | 2.0 | 7/8/10 |
| 6" | 150 | 2.2 | 7/8/10 |
| 7" | 180 | 2.2 | 7/8/10 |
| 8" | 200 | 2.4 | 7/10/12 |
| 9" | 230 | 2.4 | 7/10/12 |
| 10" | 250 | 2.8 | 7/10/12 |
| 12" | 300 | 3.0 | 7/8/10/12 |
| 14" | 350 | 3.2 | 7/8/10/12 |
| 16" | 400 | 3.4 | 7/8/10/12 |

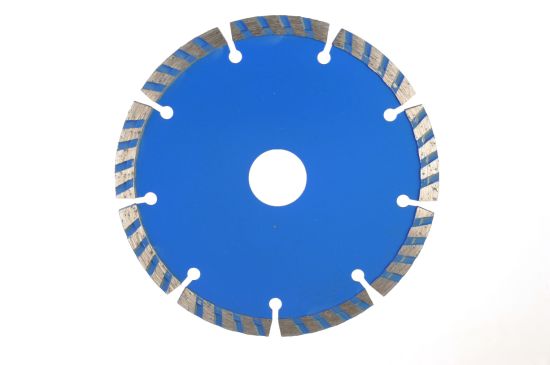

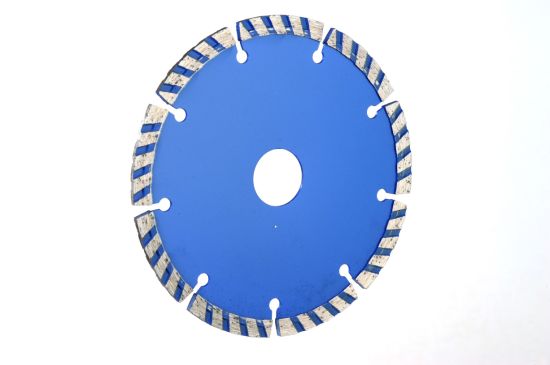

*Other specification available and arbor hole size as customers specify when order *Available hole size: knockdown, 16/19/20/22.2/254/30/35/50 TURBO TYPE (DRY & WET) This type of blades is a quality product and good for general purpose cutting of most materials, such as building materials, granite, marble, concrete, concrete reinforced with steel, engineering bricks, roof tiles and various other types of masonry products. These blades provide faster cutting with smooth stock removal and improved cooling.. | Outer | Outer | Segment | Segment |
| Diameter(mm) | Diameter(mm) | Thickness(mm) | Height(mm) |
| 4" | 105 | 1.8 | 7/8/10 |
| 4.3" | 110 | 1.8 | 7/8/10 |
| 4.5" | 115 | 1.8 | 7/8/10 |
| 5" | 125 | 2.0 | 7/8/10 |
| 6" | 150 | 2.2 | 7/8/10 |
| 7" | 180 | 2.2 | 7/8/10 |
| 8" | 200 | 2.4 | 7/10/12 |
| 9" | 230 | 2.4 | 7/10/12 |
| 10" | 250 | 2.8 | 7/10/12 |
| 12" | 300 | 3.0 | 7/8/10/12 |
| 14" | 350 | 3.2 | 7/8/10/12 |
UNIVERSAL BLADES Laser welded professional saw blades can be used for the high performance of cutting of building materials. concrete reinforced with steel, bricks, blocks and various other types of masonry products. | Outer | Outer | Segment | Segment |
| Diameter(mm) | Diameter(mm) | Thickness(mm) | Height(mm) |
| 4.5" | 115 | 2.2 | 7/8/10 |
| 5" | 125 | 2.2 | 7/8/10 |
| 7" | 180 | 2.4 | 7/8/10 |
| 8" | 200 | 2.4 | 8/10/12 |
| 9" | 230 | 2.5 | 8/10/12 |
| 10" | 250 | 2.6 | 8/10/12 |
| 12" | 300 | 3.2 | 8/10/12 |
| 14" | 350 | 3.2 | 8/10/12 |
| 16" | 400 | 3.4 | 8/10/12 |
| 18" | 450 | 3.6 | 8/10/12 |
*Other specification available and arbor hole size as customers specify when order *Available hole size: knockdown, 16/19/20/22.2/254/30/35/50 TUCK POINT | Outer | Segment | No. of Seg. |
| Diameter(mm) | Demension TxH(mm) | |
| 112 | 3.3~3.5x10 | 8 |
| 178 | 4.0x7 | 14 |
| 200 | 6.0x7 | 14 |
| 300 | 6.0x12 | 14 |
| 350 | 6.0x12 | 21 |
*Arbor hole size as customers specify when order *Available hole size: knockdown, 16/19/20/22.2/254/30/35/50 GRINDING CUP WHEEL | Diameter(mm) | Type of Grinder | Segment size(mm) |
| 60 | Turbo Type | 7.0x3.5 |
| 100 | Turbo W/nut | 20.0x5.0 |
| 178 | Turbo W/nut | 8.0x6.0 |
| 105 | Flat Turbo Type | 8.0x6.0 |
| 105 | Flat Type | 8.0x6.0 |
| 88 | Segment Type | 6.0x3.5 |
| 96 | Segment Type | 7.0x4.0 |
| 96 | Rim Type | 7.0x4.0 |
| 100 | Double Line | 8/8x6/6 |
| 178 | Double Line | 8/8x7/7 |
| 125 | L-Shape | 6x7/8 |
| 150 | L-Shape | 6x8/10 |
DIAMOND CORE BITS | Outer | Outer | Segment |
| Diameter(mm) | Length(mm) | Height(mm) |
| 21 | 370 | 7.0 |
| 36 | 370 | 7.0 |
| 56 | 370 | 7.0 |
| 63 | 370 | 7.0 |
| 76 | 370 | 7.0 |
| 89 | 370 | 7.0 |
| 108 | 370 | 7.0 |
| 120 | 370 | 7.0 |
| 150 | 370 | 7.0 |
DIAMOND CORE BITS | Outer | Outer | Segment |
| Diameter(mm) | Length(mm) | Height(mm) |
| 21 | 370 | 7.0 |
| 36 | 370 | 7.0 |
| 56 | 370 | 7.0 |
| 63 | 370 | 7.0 |
| 76 | 370 | 7.0 |
| 89 | 370 | 7.0 |
| 108 | 370 | 7.0 |
| 120 | 370 | 7.0 |
| 150 | 370 | 7.0 |
