1,000 Pieces
Shanghai, China
50, 000, 000PCS/Month
L/C, T/T, D/P, Western Union, Paypal, Money Gram

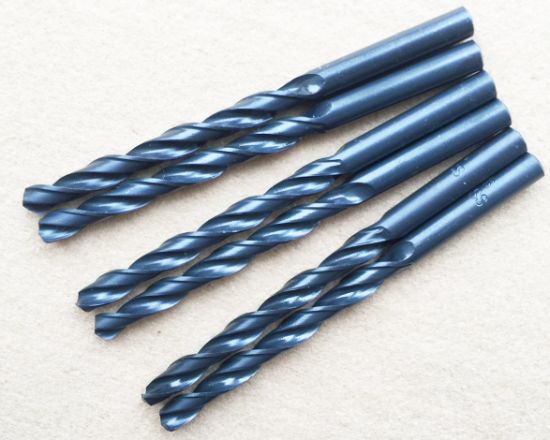

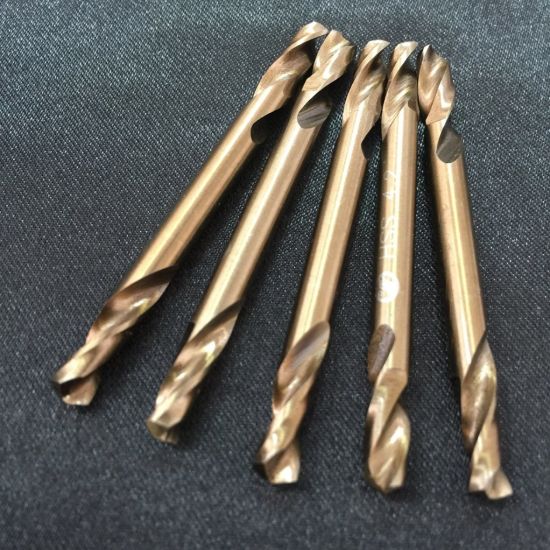

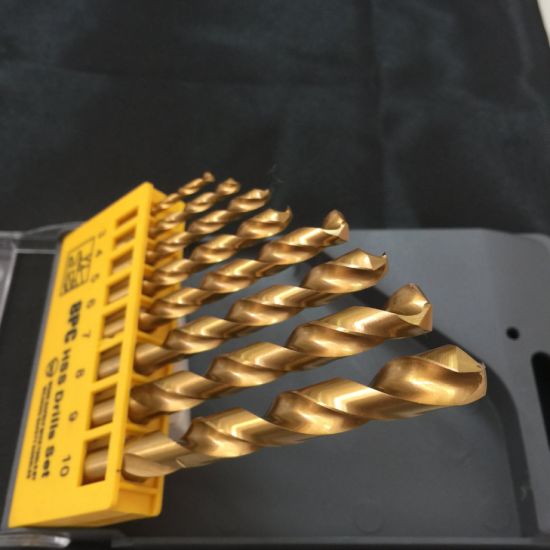

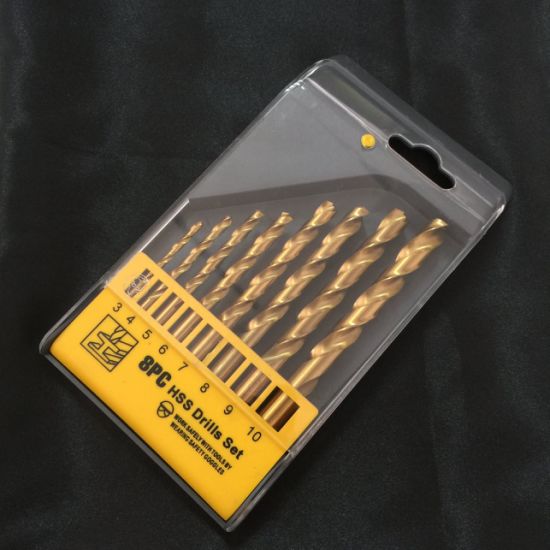

HSS Straight Shank Twist Drill
INGLAU
as Requested
3/64"-2", A-Z
Crafted by Inglau
82075010
Customized
BIN, AISI
Taper-length
Twist Drill Bit
High Speed Steel
Well Drilling, Metal Drilling, Masonry Drilling
Size | Decimal | Flute Length | Overall Length | Size | Decimal | Flute Length | Overall Length | |
Equivalent | L1 | L2 | Equivalent | L1 | L2 | |||
1/64 | 0.0156 | 5/16 | 1-1/2 | 1 | 0.2280 | 3-3/4 | 6-1/8 | |
1/32 | 0.0312 | 3/4 | 2 | 2 | 0.2210 | 3-3/4 | 6-1/8 | |
3/64 | 0.0469 | 1-1/8 | 2-1/4 | 3 | 0.2130 | 3-5/8 | 6 | |
1/16 | 0.0625 | 1-3/4 | 3 | 4 | 0.2090 | 3-5/8 | 6 | |
5/64 | 0.0781 | 2 | 3-3/4 | 5 | 0.2055 | 3-5/8 | 6 | |
3/32 | 0.0938 | 2-1/4 | 4-1/4 | 6 | 0.2040 | 3-5/8 | 6 | |
7/64 | 0.1094 | 2-1/2 | 4-5/8 | 7 | 0.2010 | 3-5/8 | 6 | |
1/8 | 0.1250 | 2-3/4 | 5-1/8 | 8 | 0.1990 | 3-5/8 | 6 | |
9/64 | 0.1406 | 3 | 5-3/8 | 9 | 0.1960 | 3-5/8 | 6 | |
5/32 | 0.1562 | 3 | 5-3/8 | 10 | 0.1935 | 3-5/8 | 6 | |
11/64 | 0.1719 | 3-3/8 | 5-3/4 | 11 | 0.1910 | 3-5/8 | 6 | |
3/16 | 0.1875 | 3-3/8 | 5-3/4 | 12 | 0.1890 | 3-5/8 | 6 | |
13/64 | 0.2031 | 3-5/8 | 6 | 13 | 0.1850 | 3-3/8 | 5-3/4 | |
7/32 | 0.2188 | 3-5/8 | 6 | 14 | 0.1820 | 3-3/8 | 5-3/4 | |
15/64 | 0.2344 | 3-3/4 | 6-1/8 | 15 | 0.1800 | 3-3/8 | 5-3/4 | |
1/4 | 0.2500 | 3-3/4 | 6-1/8 | 16 | 0.1770 | 3-3/8 | 5-3/4 | |
17/64 | 0.2656 | 3-7/8 | 6-1/4 | 17 | 0.1730 | 3-3/8 | 5-3/4 | |
9/32 | 0.2812 | 3-7/8 | 6-1/4 | 18 | 0.1695 | 3-3/8 | 5-3/4 | |
19/64 | 0.2969 | 4 | 6-3/8 | 19 | 0.1660 | 3-3/8 | 5-3/4 | |
5/16 | 0.3125 | 4 | 6-3/8 | 20 | 0.1610 | 3-3/8 | 5-3/4 | |
21/64 | 0.3281 | 4-1/8 | 6-1/2 | 21 | 0.1590 | 3-3/8 | 5-3/4 | |
11/32 | 0.3438 | 4-1/8 | 6-1/2 | 22 | 0.1570 | 3-3/8 | 5-3/4 | |
23/64 | 0.3594 | 4-1/4 | 6-3/4 | 23 | 0.1540 | 3 | 5-3/8 | |
3/8 | 0.3750 | 4-1/4 | 6-3/4 | 24 | 0.1520 | 3 | 5-3/8 | |
25/64 | 0.3906 | 4-3/8 | 7 | 25 | 0.1495 | 3 | 5-3/8 | |
13/32 | 0.4062 | 4-3/8 | 7 | 26 | 0.1470 | 3 | 5-3/8 | |
27/64 | 0.4219 | 4-5/8 | 7-1/4 | 27 | 0.1440 | 3 | 5-3/8 | |
7/16 | 0.4375 | 4-5/8 | 7-1/4 | 28 | 0.1405 | 3 | 5-3/8 | |
29/64 | 0.4531 | 4-3/4 | 7-1/2 | 29 | 0.1360 | 3 | 5-3/8 | |
15/32 | 0.4688 | 4-3/4 | 7-1/2 | 30 | 0.1285 | 3 | 5-3/8 | |
31/64 | 0.4844 | 4-3/4 | 7-3/4 | 31 | 0.1200 | 2-3/4 | 5-1/8 | |
1/2 | 0.5000 | 4-3/4 | 7-3/4 | 32 | 0.1160 | 2-3/4 | 5-1/8 | |
33/64 | 0.5156 | 4-3/4 | 8 | 33 | 0.1130 | 2-3/4 | 5-1/8 | |
17/32 | 0.5312 | 4-3/4 | 8 | 34 | 0.1110 | 2-3/4 | 5-1/8 | |
35/64 | 0.5469 | 4-7/8 | 8-1/4 | 35 | 0.1100 | 2-3/4 | 5-1/8 | |
9/16 | 0.5625 | 4-7/8 | 8-1/4 | 36 | 0.1065 | 2-3/4 | 5-5/8 | |
37/64 | 0.5781 | 4-7/8 | 8-3/4 | 37 | 0.1040 | 2-3/4 | 5-5/8 | |
19/32 | 0.5938 | 4-7/8 | 8-3/4 | 38 | 0.1015 | 2-3/4 | 5-5/8 | |
39/64 | 0.6094 | 4-7/8 | 8-3/4 | 39 | 0.0995 | 2-3/4 | 5-5/8 | |
5/8 | 0.6250 | 4-7/8 | 8-3/4 | 40 | 0.0980 | 2-3/4 | 5-5/8 | |
41/64 | 0.6406 | 5-1/8 | 9 | 41 | 0.0960 | 2-1/2 | 4-5/8 | |
21/32 | 0.6562 | 5-1/8 | 9 | 42 | 0.0935 | 2-1/4 | 4-1/4 | |
43/64 | 0.6719 | 5-3/8 | 9-1/4 | 43 | 0.0890 | 2-1/4 | 4-1/4 | |
11/16 | 0.6875 | 5-3/8 | 9-1/4 | 44 | 0.0860 | 2-1/4 | 4-1/4 | |
45/64 | 0.7031 | 5-5/8 | 9-1/2 | 45 | 0.0820 | 2-1/4 | 4-1/4 | |
23/32 | 0.7188 | 5-5/8 | 9-1/2 | 46 | 0.0810 | 2-1/4 | 4-1/4 | |
47/64 | 0.7344 | 5-7/8 | 9-3/4 | 47 | 0.0785 | 2-1/4 | 4-1/4 | |
3/4 | 0.7500 | 5-7/8 | 9-3/4 | 48 | 0.0760 | 2 | 3-3/4 | |
49/64 | 0.7656 | 6 | 9-7/8 | 49 | 0.0730 | 2 | 3-3/4 | |
25/32 | 0.7812 | 6 | 9-7/8 | 50 | 0.0700 | 2 | 3-3/4 | |
51/64 | 0.7969 | 6-1/8 | 10 | 51 | 0.0670 | 2 | 3-3/4 | |
13/16 | 0.8125 | 6-1/8 | 10 | 52 | 0.0635 | 2 | 3-3/4 | |
53/64 | 0.8281 | 6-1/8 | 10 | 53 | 0.0595 | 1-3/4 | 3 | |
27/32 | 0.8438 | 6-1/8 | 10 | 54 | 0.0550 | 1-3/4 | 3 | |
55/64 | 0.8594 | 6-1/8 | 10 | 55 | 0.0520 | 1-3/4 | 3 | |
7/8 | 0.8750 | 6-1/8 | 10 | 56 | 0.0465 | 1-1/8 | 2-1/4 | |
57/64 | 0.8906 | 6-1/8 | 10 | 57 | 0.0430 | 1-1/8 | 2-1/4 | |
29/32 | 0.9062 | 6-1/8 | 10 | 58 | 0.0420 | 1-1/8 | 2-1/4 | |
59/64 | 0.9219 | 6-1/8 | 10-3/4 | 59 | 0.0410 | 1-1/8 | 2-1/4 | |
15/16 | 0.9375 | 6-1/8 | 10-3/4 | 60 | 0.0400 | 1-1/8 | 2-1/4 | |
61/64 | 0.9531 | 6-3/8 | 11 | 61 | 0.0390 | 1-1/8 | 2-1/4 | |
31/32 | 0.9688 | 6-3/8 | 11 | 62 | 0.0380 | 3/4 | 2 | |
63/64 | 0.9844 | 6-3/8 | 11 | 63 | 0.0370 | 3/4 | 2 | |
1 | 1.0000 | 6-3/8 | 11 | 64 | 0.0360 | 3/4 | 2 | |
1-1/64 | 1.0156 | 6-1/2 | 11-1/8 | 65 | 0.0350 | 3/4 | 2 | |
1-1/32 | 1.0312 | 6-1/2 | 11-1/8 | 66 | 0.0330 | 3/4 | 2 | |
1-3/64 | 1.0469 | 6-5/8 | 11-1/4 | 67 | 0.0320 | 3/4 | 2 | |
2001-1-16 | 1.0625 | 6-5/8 | 11-1/4 | 68 | 0.0310 | 3/4 | 2 | |
1-5/64 | 1.0781 | 6-7/8 | 11-1/2 | 69 | 0.0292 | 3/4 | 2 | |
1-3/32 | 1.0938 | 6-7/8 | 11-1/2 | 70 | 0.0280 | 3/4 | 2 | |
1-7/64 | 1.1094 | 7-1/8 | 11-3/4 | 71 | 0.0260 | 3/4 | 2 | |
2001-1-8 | 1.1250 | 7-1/8 | 11-3/4 | 72 | 0.0250 | 5/16 | 1-1/2 | |
1-9/64 | 1.1406 | 7-1/4 | 11-7/8 | 73 | 0.0240 | 5/16 | 1-1/2 | |
1-5/32 | 1.1562 | 7-1/4 | 11-7/8 | 74 | 0.0225 | 5/16 | 1-1/2 | |
1-11/64 | 1.1719 | 7-3/8 | 12 | 75 | 0.0210 | 5/16 | 1-1/2 | |
1-3/16 | 1.1875 | 7-3/8 | 12 | 76 | 0.0200 | 5/16 | 1-1/2 | |
1-13/64 | 1.2031 | 7-1/2 | 12-1/8 | 77 | 0.0180 | 5/16 | 1-1/2 | |
1-7/32 | 1.2188 | 7-1/2 | 12-1/8 | 78 | 0.0160 | 5/16 | 1-1/2 | |
1-15/64 | 1.2344 | 7-7/8 | 12-1/2 | 79 | 0.0145 | 5/16 | 1-1/2 | |
1-1/4 | 1.2500 | 7-7/8 | 12-1/2 | 80 | 0.0135 | 5/16 | 1-1/2 | |
1-5/16 | 1.3125 | 8-5/8 | 14-1/4 | |||||
1-3/8 | 1.3750 | 8-7/8 | 14-1/4 | |||||
1-7/16 | 1.4375 | 9-1/8 | 14-3/4 | |||||
1-1/2 | 1.5000 | 9-3/8 | 15 | |||||
1-9/16 | 1.5625 | 9-5/8 | 15-1/4 | |||||
1-5/8 | 1.6250 | 9-7/8 | 15-5/8 | |||||
1-3/4 | 1.7500 | 10-1/2 | 16-1/4 |
Size | Decimal | Flute Length | Overall Length | Size | Decimal | Flute Length | Overall Length | |
Equivalent | L1 | L2 | Equivalent | L1 | L2 | |||
1/64 | 0.0156 | 5/16 | 1-1/2 | 1 | 0.2280 | 3-3/4 | 6-1/8 | |
1/32 | 0.0312 | 3/4 | 2 | 2 | 0.2210 | 3-3/4 | 6-1/8 | |
3/64 | 0.0469 | 1-1/8 | 2-1/4 | 3 | 0.2130 | 3-5/8 | 6 | |
1/16 | 0.0625 | 1-3/4 | 3 | 4 | 0.2090 | 3-5/8 | 6 | |
5/64 | 0.0781 | 2 | 3-3/4 | 5 | 0.2055 | 3-5/8 | 6 | |
3/32 | 0.0938 | 2-1/4 | 4-1/4 | 6 | 0.2040 | 3-5/8 | 6 | |
7/64 | 0.1094 | 2-1/2 | 4-5/8 | 7 | 0.2010 | 3-5/8 | 6 | |
1/8 | 0.1250 | 2-3/4 | 5-1/8 | 8 | 0.1990 | 3-5/8 | 6 | |
9/64 | 0.1406 | 3 | 5-3/8 | 9 | 0.1960 | 3-5/8 | 6 | |
5/32 | 0.1562 | 3 | 5-3/8 | 10 | 0.1935 | 3-5/8 | 6 | |
11/64 | 0.1719 | 3-3/8 | 5-3/4 | 11 | 0.1910 | 3-5/8 | 6 | |
3/16 | 0.1875 | 3-3/8 | 5-3/4 | 12 | 0.1890 | 3-5/8 | 6 | |
13/64 | 0.2031 | 3-5/8 | 6 | 13 | 0.1850 | 3-3/8 | 5-3/4 | |
7/32 | 0.2188 | 3-5/8 | 6 | 14 | 0.1820 | 3-3/8 | 5-3/4 | |
15/64 | 0.2344 | 3-3/4 | 6-1/8 | 15 | 0.1800 | 3-3/8 | 5-3/4 | |
1/4 | 0.2500 | 3-3/4 | 6-1/8 | 16 | 0.1770 | 3-3/8 | 5-3/4 | |
17/64 | 0.2656 | 3-7/8 | 6-1/4 | 17 | 0.1730 | 3-3/8 | 5-3/4 | |
9/32 | 0.2812 | 3-7/8 | 6-1/4 | 18 | 0.1695 | 3-3/8 | 5-3/4 | |
19/64 | 0.2969 | 4 | 6-3/8 | 19 | 0.1660 | 3-3/8 | 5-3/4 | |
5/16 | 0.3125 | 4 | 6-3/8 | 20 | 0.1610 | 3-3/8 | 5-3/4 | |
21/64 | 0.3281 | 4-1/8 | 6-1/2 | 21 | 0.1590 | 3-3/8 | 5-3/4 | |
11/32 | 0.3438 | 4-1/8 | 6-1/2 | 22 | 0.1570 | 3-3/8 | 5-3/4 | |
23/64 | 0.3594 | 4-1/4 | 6-3/4 | 23 | 0.1540 | 3 | 5-3/8 | |
3/8 | 0.3750 | 4-1/4 | 6-3/4 | 24 | 0.1520 | 3 | 5-3/8 | |
25/64 | 0.3906 | 4-3/8 | 7 | 25 | 0.1495 | 3 | 5-3/8 | |
13/32 | 0.4062 | 4-3/8 | 7 | 26 | 0.1470 | 3 | 5-3/8 | |
27/64 | 0.4219 | 4-5/8 | 7-1/4 | 27 | 0.1440 | 3 | 5-3/8 | |
7/16 | 0.4375 | 4-5/8 | 7-1/4 | 28 | 0.1405 | 3 | 5-3/8 | |
29/64 | 0.4531 | 4-3/4 | 7-1/2 | 29 | 0.1360 | 3 | 5-3/8 | |
15/32 | 0.4688 | 4-3/4 | 7-1/2 | 30 | 0.1285 | 3 | 5-3/8 | |
31/64 | 0.4844 | 4-3/4 | 7-3/4 | 31 | 0.1200 | 2-3/4 | 5-1/8 | |
1/2 | 0.5000 | 4-3/4 | 7-3/4 | 32 | 0.1160 | 2-3/4 | 5-1/8 | |
33/64 | 0.5156 | 4-3/4 | 8 | 33 | 0.1130 | 2-3/4 | 5-1/8 | |
17/32 | 0.5312 | 4-3/4 | 8 | 34 | 0.1110 | 2-3/4 | 5-1/8 | |
35/64 | 0.5469 | 4-7/8 | 8-1/4 | 35 | 0.1100 | 2-3/4 | 5-1/8 | |
9/16 | 0.5625 | 4-7/8 | 8-1/4 | 36 | 0.1065 | 2-3/4 | 5-5/8 | |
37/64 | 0.5781 | 4-7/8 | 8-3/4 | 37 | 0.1040 | 2-3/4 | 5-5/8 | |
19/32 | 0.5938 | 4-7/8 | 8-3/4 | 38 | 0.1015 | 2-3/4 | 5-5/8 | |
39/64 | 0.6094 | 4-7/8 | 8-3/4 | 39 | 0.0995 | 2-3/4 | 5-5/8 | |
5/8 | 0.6250 | 4-7/8 | 8-3/4 | 40 | 0.0980 | 2-3/4 | 5-5/8 | |
41/64 | 0.6406 | 5-1/8 | 9 | 41 | 0.0960 | 2-1/2 | 4-5/8 | |
21/32 | 0.6562 | 5-1/8 | 9 | 42 | 0.0935 | 2-1/4 | 4-1/4 | |
43/64 | 0.6719 | 5-3/8 | 9-1/4 | 43 | 0.0890 | 2-1/4 | 4-1/4 | |
11/16 | 0.6875 | 5-3/8 | 9-1/4 | 44 | 0.0860 | 2-1/4 | 4-1/4 | |
45/64 | 0.7031 | 5-5/8 | 9-1/2 | 45 | 0.0820 | 2-1/4 | 4-1/4 | |
23/32 | 0.7188 | 5-5/8 | 9-1/2 | 46 | 0.0810 | 2-1/4 | 4-1/4 | |
47/64 | 0.7344 | 5-7/8 | 9-3/4 | 47 | 0.0785 | 2-1/4 | 4-1/4 | |
3/4 | 0.7500 | 5-7/8 | 9-3/4 | 48 | 0.0760 | 2 | 3-3/4 | |
49/64 | 0.7656 | 6 | 9-7/8 | 49 | 0.0730 | 2 | 3-3/4 | |
25/32 | 0.7812 | 6 | 9-7/8 | 50 | 0.0700 | 2 | 3-3/4 | |
51/64 | 0.7969 | 6-1/8 | 10 | 51 | 0.0670 | 2 | 3-3/4 | |
13/16 | 0.8125 | 6-1/8 | 10 | 52 | 0.0635 | 2 | 3-3/4 | |
53/64 | 0.8281 | 6-1/8 | 10 | 53 | 0.0595 | 1-3/4 | 3 | |
27/32 | 0.8438 | 6-1/8 | 10 | 54 | 0.0550 | 1-3/4 | 3 | |
55/64 | 0.8594 | 6-1/8 | 10 | 55 | 0.0520 | 1-3/4 | 3 | |
7/8 | 0.8750 | 6-1/8 | 10 | 56 | 0.0465 | 1-1/8 | 2-1/4 | |
57/64 | 0.8906 | 6-1/8 | 10 | 57 | 0.0430 | 1-1/8 | 2-1/4 | |
29/32 | 0.9062 | 6-1/8 | 10 | 58 | 0.0420 | 1-1/8 | 2-1/4 | |
59/64 | 0.9219 | 6-1/8 | 10-3/4 | 59 | 0.0410 | 1-1/8 | 2-1/4 | |
15/16 | 0.9375 | 6-1/8 | 10-3/4 | 60 | 0.0400 | 1-1/8 | 2-1/4 | |
61/64 | 0.9531 | 6-3/8 | 11 | 61 | 0.0390 | 1-1/8 | 2-1/4 | |
31/32 | 0.9688 | 6-3/8 | 11 | 62 | 0.0380 | 3/4 | 2 | |
63/64 | 0.9844 | 6-3/8 | 11 | 63 | 0.0370 | 3/4 | 2 | |
1 | 1.0000 | 6-3/8 | 11 | 64 | 0.0360 | 3/4 | 2 | |
1-1/64 | 1.0156 | 6-1/2 | 11-1/8 | 65 | 0.0350 | 3/4 | 2 | |
1-1/32 | 1.0312 | 6-1/2 | 11-1/8 | 66 | 0.0330 | 3/4 | 2 | |
1-3/64 | 1.0469 | 6-5/8 | 11-1/4 | 67 | 0.0320 | 3/4 | 2 | |
2001-1-16 | 1.0625 | 6-5/8 | 11-1/4 | 68 | 0.0310 | 3/4 | 2 | |
1-5/64 | 1.0781 | 6-7/8 | 11-1/2 | 69 | 0.0292 | 3/4 | 2 | |
1-3/32 | 1.0938 | 6-7/8 | 11-1/2 | 70 | 0.0280 | 3/4 | 2 | |
1-7/64 | 1.1094 | 7-1/8 | 11-3/4 | 71 | 0.0260 | 3/4 | 2 | |
2001-1-8 | 1.1250 | 7-1/8 | 11-3/4 | 72 | 0.0250 | 5/16 | 1-1/2 | |
1-9/64 | 1.1406 | 7-1/4 | 11-7/8 | 73 | 0.0240 | 5/16 | 1-1/2 | |
1-5/32 | 1.1562 | 7-1/4 | 11-7/8 | 74 | 0.0225 | 5/16 | 1-1/2 | |
1-11/64 | 1.1719 | 7-3/8 | 12 | 75 | 0.0210 | 5/16 | 1-1/2 | |
1-3/16 | 1.1875 | 7-3/8 | 12 | 76 | 0.0200 | 5/16 | 1-1/2 | |
1-13/64 | 1.2031 | 7-1/2 | 12-1/8 | 77 | 0.0180 | 5/16 | 1-1/2 | |
1-7/32 | 1.2188 | 7-1/2 | 12-1/8 | 78 | 0.0160 | 5/16 | 1-1/2 | |
1-15/64 | 1.2344 | 7-7/8 | 12-1/2 | 79 | 0.0145 | 5/16 | 1-1/2 | |
1-1/4 | 1.2500 | 7-7/8 | 12-1/2 | 80 | 0.0135 | 5/16 | 1-1/2 | |
1-5/16 | 1.3125 | 8-5/8 | 14-1/4 | |||||
1-3/8 | 1.3750 | 8-7/8 | 14-1/4 | |||||
1-7/16 | 1.4375 | 9-1/8 | 14-3/4 | |||||
1-1/2 | 1.5000 | 9-3/8 | 15 | |||||
1-9/16 | 1.5625 | 9-5/8 | 15-1/4 | |||||
1-5/8 | 1.6250 | 9-7/8 | 15-5/8 | |||||
1-3/4 | 1.7500 | 10-1/2 | 16-1/4 |
