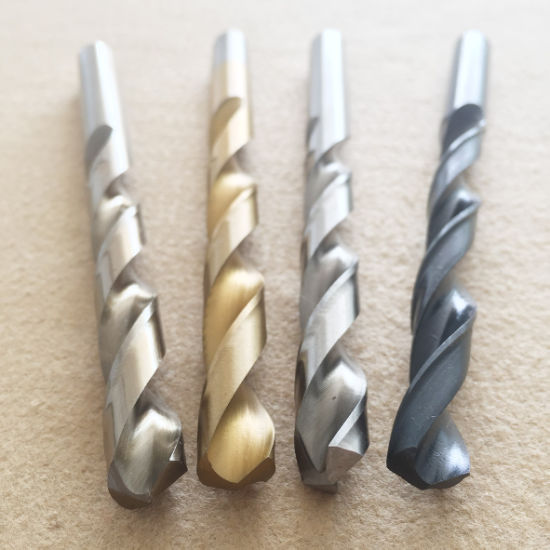

HSS Straight Shank Twist Drills DIN338

Inquire Add to Basket

  • 1,000 Pieces

  • Shanghai, China

  • 50, 000, 000PCS/Month

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • INGLAU

  • as Requested

  • Metal drill bits HSS-G, metric

  • Crafted by Inglau Tools

  • 82075010

  • Customized

  • BIN, AISI

  • Jobber-length

  • Twist Drill Bit

  • High Speed Steel

  • Well Drilling, Metal Drilling, Masonry Drilling

HSS Straight Shank Twist Drills DIN338

HSS Straight Shank Twist Drills DIN338

HSS Straight Shank Twist Drills DIN338

HSS Straight Shank Twist Drills DIN338 HSS Straight Shank Twist Drills DIN338
D L1 L2 D L1 L2 D L1 L2
0.2 2.5 19 1.65 20 43 4.8 52 86
0.22 2.5 19 1.7 20 43 4.9 52 86
0.25 3 19 1.75 22 46 5 52 86
0.28 3 19 1.8 22 46 5.1 52 86
0.3 3 19 1.85 22 46 5.2 52 86
0.32 4 19 1.9 22 46 5.3 52 86
0.35 4 19 1.95 24 49 5.4 57 93
0.38 4 19 2 24 49 5.5 57 93
0.4 5 20 2.05 24 49 5.6 57 93
0.42 5 20 2.1 24 49 5.7 57 93
0.45 5 20 2.15 27 53 5.8 57 93
0.48 5 20 2.2 27 53 5.9 57 93
0.5 6 22 2.25 27 53 6 57 93
0.52 6 22 2.3 27 53 6.1 63 101
0.55 7 24 2.35 27 53 6.2 63 101
0.58 7 24 2.4 30 57 6.3 63 101
0.6 7 24 2.45 30 57 6.4 63 101
0.62 8 26 2.5 30 57 6.5 63 101
0.65 8 26 2.55 30 57 6.6 63 101
0.68 9 28 2.6 30 57 6.7 63 101
0.7 9 28 2.65 30 57 6.8 69 109
0.72 9 28 2.7 33 61 6.9 69 109
0.75 9 28 2.75 33 61 7 69 109
0.78 10 30 2.8 33 61 7.1 69 109
0.8 10 30 2.85 33 61 7.2 69 109
0.82 10 30 2.9 33 61 7.3 69 109
0.85 10 30 2.95 33 61 7.4 69 109
0.88 11 32 3 33 61 7.5 69 109
0.9 11 32 3.1 36 65 7.6 75 117
0.92 11 32 3.2 36 65 7.7 75 117
0.95 11 32 3.3 36 65 7.8 75 117
0.98 12 34 3.4 39 70 7.9 75 117
1 12 34 3.5 39 70 8 75 117
1.05 12 34 3.6 39 70 8.1 75 117
1.1 14 36 3.7 39 70 8.2 75 117
1.15 14 36 3.8 43 75 8.3 75 117
1.2 16 38 3.9 43 75 8.4 75 117
1.25 16 38 4 43 75 8.5 75 117
1.3 16 38 4.1 43 75 8.6 81 125
1.35 18 40 4.2 43 75 8.7 81 125
1.4 18 40 4.3 47 80 8.8 81 125
1.45 18 40 4.4 47 80 8.9 81 125
1.5 18 40 4.5 47 80 9 81 125
1.55 20 43 4.6 47 80 9.1 81 125
1.6 20 43 4.7 47 80 9.2 81 125

More Specifications are available upon request
