Milled, HSS Straight Shank Twist Drill -Screw Machine Length

Inquire Add to Basket

  • 1,000 Pieces

  • Shanghai, China

  • 50, 000, 000PCS/Month

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • 3/64"~2", 1#~60#, A-Z

  • INGLAU

  • as Requested

  • 3/64"~2", 1#~60#, A-Z

  • Crafted by Inglau

  • 82075010

  • Customized

  • BIN, AISI

  • Screw Machine Drills

  • Twist Drill Bit

  • High Speed Steel

  • Well Drilling, Metal Drilling, Masonry Drilling

HSS Straight Shank Twist Drill -SCREW MACHINE LENGTH


D Diameter
L1 Overall Length
L2 Flute Length

Milled, HSS Straight Shank Twist Drill -Screw Machine Length
Size Decimal Flute Length Overall Length Size Decimal Flute Length Overall Length
Equivalent L1 L2 Equivalent L1 L2
3/64 0.0469 1/2 1-3/8 1 0.2280 1-5/16 2-7/16
1/16 0.0625 5/8 1-5/8 2 0.2210 1-5/16 2-7/16
5/64 0.0781 11/16 1-11/16 3 0.2130 1-1/4 2-3/8
3/32 0.0938 3/4 1-3/4 4 0.2090 1-1/4 2-3/8
7/64 0.1094 13/16 1-13/16 5 0.2055 1-1/4 2-3/8
1/8 0.1250 7/8 1-7/8 6 0.2040 1-1/4 2-3/8
9/64 0.1406 15/16 1-15/16 7 0.2010 1-3/16 2-1/4
5/32 0.1562 1 2-1/16 8 0.1990 1-3/16 2-1/4
11/64 0.1719 1-1/16 2-1/8 9 0.1960 1-3/16 2-1/4
3/16 0.1875 1-1/8 2-3/16 10 0.1935 1-3/16 2-1/4
13/64 0.2031 1-3/16 3-1/4 11 0.1910 1-3/4 2-1/4
7/32 0.2188 1-1/4 2-3/8 12 0.1890 1-3/16 2-3/16
15/64 0.2344 1-5/16 2-7/16 13 0.1850 1-3/16 2-3/16
1/4 0.2500 1-3/8 2-1/2 14 0.1820 1-3/16 2-3/16
17/64 0.2656 1-7/16 2-5/8 15 0.1800 1-3/16 2-3/16
9/32 0.2812 1-1/2 2-11/16 16 0.1770 1-3/16 2-3/16
19/64 0.2969 1-9/16 2-3/4 17 0.1730 1-3/16 2-3/16
5/16 0.3125 1-5/8 2-13/16 18 0.1695 1-1/8 2-1/8
21/64 0.3281 1-11/16 2-15/16 19 0.1660 1-1/8 2-1/8
11/32 0.3438 1-11/16 3 20 0.1610 1-1/8 2-1/8
23/64 0.3594 1-3/4 3-1/16 21 0.1590 1-1/8 2-1/8
3/8 0.3750 1-13/16 3-1/8 22 0.1570 1-1/8 2-1/8
25/64 0.3906 1-7/8 3-1/4 23 0.1540 1-1/16 2-1/16
13/32 0.4062 1-15/16 3-5/16 24 0.1520 1-1/16 2-1/16
27/64 0.4219 2 3-3/8 25 0.1495 1-1/16 2-1/16
7/16 0.4375 2-1/16 3-7/16 26 0.1470 1-1/16 2-1/16
29/64 0.4531 2-1/8 3-9/16 27 0.1440 1-1/16 2-1/16
15/32 0.4688 2-1/8 3-5/8 28 0.1405 15/16 15/16
31/64 0.4844 2-3/16 3-11/16 29 0.1360 15/16 15/16
1/2 0.5000 2-1/4 3-3/4 30 0.1285 15/16 15/16
33/64 0.5156 2-3/8 3-7/8 31 0.1200 7/8 1-7/8
17/32 0.5312 2-3/8 3-7/8 32 0.1160 7/8 1-7/8
35/64 0.5469 2-1/2 4 33 0.1130 7/8 1-7/8
9/16 0.5625 2-1/2 4 34 0.1110 7/8 1-7/8
37/64 0.5781 2-5/8 4-1/8 35 0.1100 7/8 1-7/8
19/32 0.5938 2-5/8 4-1/8 36 0.1065 13/16 1-13/16
39/64 0.6094 2-3/4 4-1/4 37 0.1040 13/16 1-13/16
5/8 0.6250 2-3/4 4-1/4 38 0.1015 13/16 1-13/16
41/64 0.6406 2-7/8 4-1/2 39 0.0995 13/16 1-13/16
21/32 0.6562 2-7/8 4-1/2 40 0.0980 13/16 1-13/16
43/64 0.6719 2-7/8 4-5/8 41 0.0960 13/16 1-13/16
11/16 0.6875 2-7/8 4-5/8 42 0.0935 3/4 1-3/4
45/64 0.7031 3 4-3/4 43 0.0890 3/4 1-3/4
23/32 0.7188 3 4-3/4 44 0.0860 3/4 1-3/4
47/64 0.7344 3-1/8 5 45 0.0820 3/4 1-3/4
3/4 0.7500 3-1/8 5 46 0.0810 3/4 1-3/4
49/64 0.7656 3-1/4 5-1/8 47 0.0785 11/16 1-11/16
25/32 0.7812 3-1/4 5-1/8 48 0.0760 11/16 1-11/16
51/64 0.7969 3-3/8 5-1/4 49 0.0730 11/16 1-11/16
13/16 0.8125 3-3/8 5-1/4 50 0.0700 11/16 1-11/16
53/64 0.8281 3-1/2 5-3/8 51 0.0670 11/16 1-11/16
27/32 0.8438 3-1/2 5-3/8 52 0.0635 11/16 1-11/16
55/64 0.8594 3-1/2 5-1/2 53 0.0595 5/8 1-5/8
7/8 0.8750 3-1/2 5-1/2 54 0.0550 5/8 1-5/8
57/64 0.8906 3-5/8 5-5/8 55 0.0520 5/8 1-5/8
29/32 0.9062 3-5/8 5-5/8 56 0.0465 1/2 1-3/8
59/64 0.9219 3-3/4 5-3/4 57 0.0430 1/2 1-3/8
15/16 0.9375 3-3/4 5-3/4 58 0.0420 1/2 1-3/8
61/64 0.9531 3-7/8 5-7/8 59 0.0410 1/2 1-3/8
31/32 0.9688 3-7/8 5-7/8 60 0.0400 1/2 1-3/8
63/64 0.9844 4 6
1 1.0000 4 6
1-1/16 1.0625 4 6-1/4
1-1/8 1.1250 4 6-3/8
1-3/16 1.1875 4-1/4 6-5/8
1-1/4 1.2500 4-3/8 6-3/4
1-5/16 1.3125 4-3/8 7
1-3/8 1.3750 4-1/2 7-1/8
1-7/16 1.4375 4-3/4 7-3/8
1-1/2 1.5000 4-7/8 7-1/2
1-9/16 1.5625 4-7/8 7-3/4
1-5/8 1.6250 4-7/8 7-3/4
1-11/16 1.6875 5-1/8 8
1-3/4 1.7500 5-1/8 8
1-13/16 1.8125 5-3/8 8-1/4
1-7/8 1.8750 5-3/8 8-1/4
1-15/16 1.9375 5-5/8 8-1/2
2 2.0000 5-5/8 8-1/2

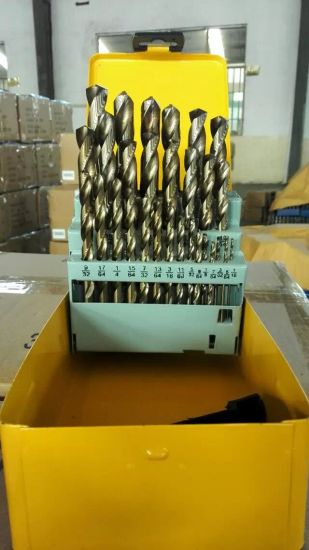

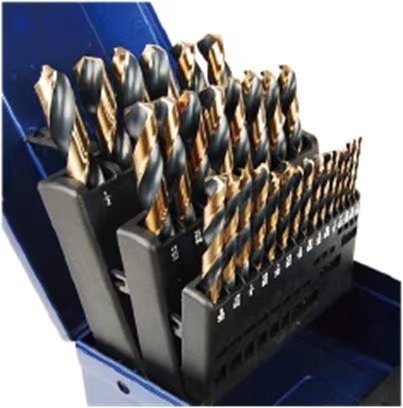

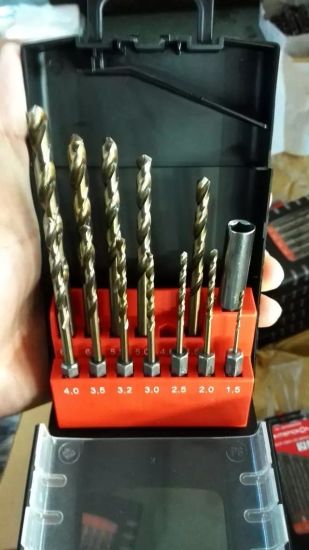

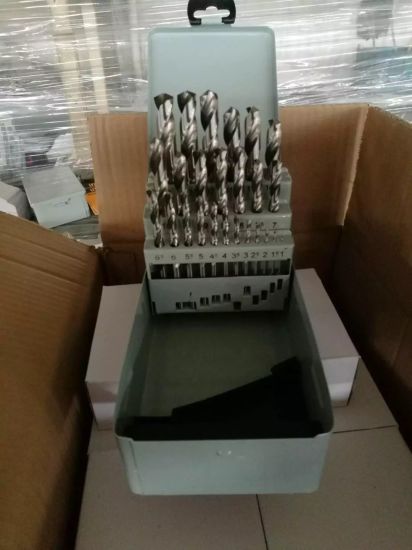

Milled, HSS Straight Shank Twist Drill -Screw Machine Length
Milled, HSS Straight Shank Twist Drill -Screw Machine Length
