Tin, HSS Straight Shank Twist Drill -DIN1897

  • 1,000 Pieces

  • Shanghai, China

  • 50, 000, 000PCS/Month

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • 1MM~20MM

  • INGLAU

  • as Requested

  • 1MM~20MM

  • Crafted by Inglau Tools

  • 82075010

  • Customized

  • BIN, AISI

  • DIN1897

  • Twist Drill Bit

  • High Speed Steel

  • Well Drilling, Metal Drilling, Masonry Drilling

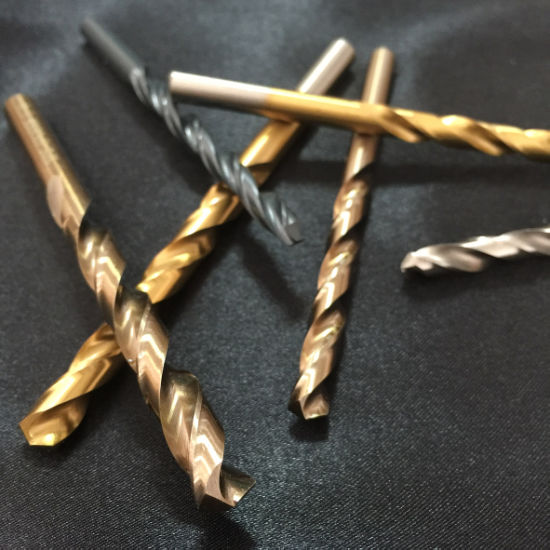

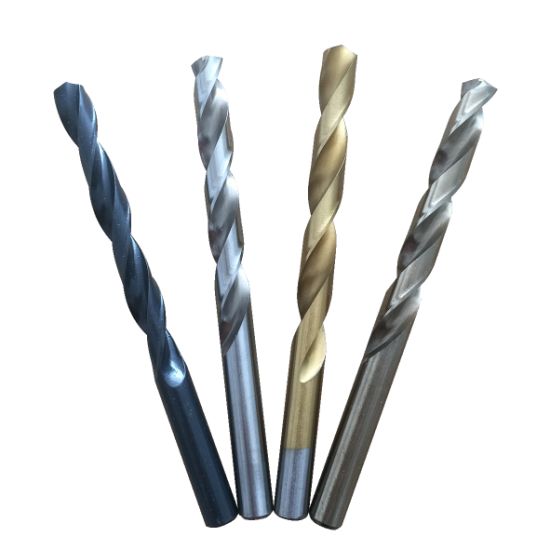

HSS Straight Shank Twist Drills DIN1897

Tin, HSS Straight Shank Twist Drill -DIN1897

Tin, HSS Straight Shank Twist Drill -DIN1897 Tin, HSS Straight Shank Twist Drill -DIN1897
D L1 L2 D L1 L2 D L1 L2
1.00 26 7 6.30 70 31 11.60 95 47
1.10 28 7 6.40 70 31 11.70 95 47
1.20 30 8 6.50 70 31 11.80 95 47
1.30 30 8 6.60 70 31 11.90 102 51
1.40 32 9 6.70 70 31 12.00 102 51
1.50 32 9 6.80 74 34 12.10 102 51
1.60 34 10 6.90 74 34 12.20 102 51
1.70 34 10 7.00 74 34 12.30 102 51
1.80 36 11 7.10 74 34 12.40 102 51
1.90 36 11 7.20 74 34 12.50 102 51
2.00 38 12 7.30 74 34 12.60 102 51
2.10 38 12 7.40 74 34 12.70 102 51
2.20 40 13 7.50 74 34 12.80 102 51
2.30 40 13 7.60 79 37 12.90 102 51
2.40 43 14 7.70 79 37 13.00 102 51
2.50 43 14 7.80 79 37 13.10 102 51
2.60 43 14 7.90 79 37 13.20 102 51
2.70 46 16 8.00 79 37 13.30 107 54
2.80 46 16 8.10 79 37 13.40 107 54
2.90 46 16 8.20 79 37 13.50 107 54
3.00 46 16 8.30 79 37 13.60 107 54
3.10 49 18 8.40 79 37 13.70 107 54
3.20 49 18 8.50 79 37 13.80 107 54
3.30 49 18 8.60 84 40 13.90 107 54
3.40 52 20 8.70 84 40 14.00 107 54
3.50 52 20 8.80 84 40 14.50 111 56
3.60 52 20 8.90 84 40 15.00 111 56
3.70 52 20 9.00 84 40 15.50 115 58
3.80 55 22 9.10 84 40 16.00 115 58
3.90 55 22 9.20 84 40 16.50 119 58
4.00 55 22 9.30 84 40 17.00 119 58
4.10 55 22 9.40 84 40 17.50 123 62
4.20 55 22 9.50 84 40 18.00 123 62
4.30 58 24 9.60 89 43 18.50 127 62
4.40 58 24 9.70 89 43 19.00 127 62
4.50 58 24 9.80 89 43 19.50 131 66
4.60 58 24 9.90 89 43 20.00 131 66
4.70 58 24 10.00 89 43
4.80 62 26 10.10 89 43
4.90 62 26 10.20 89 43
5.00 62 26 10.30 89 43
5.10 62 26 10.40 89 43
5.20 62 26 10.50 89 43
5.30 66 28 10.60 89 43
5.40 66 28 10.70 95 47
5.50 66 28 10.80 95 47
5.60 66 28 10.90 95 47
5.70 66 28 11.00 95 47
5.80 66 28 11.10 95 47
5.90 66 28 11.20 95 47
6.00 66 28 11.30 95 47
6.10 70 31 11.40 95 47
6.20 70 31 11.50 95 47
