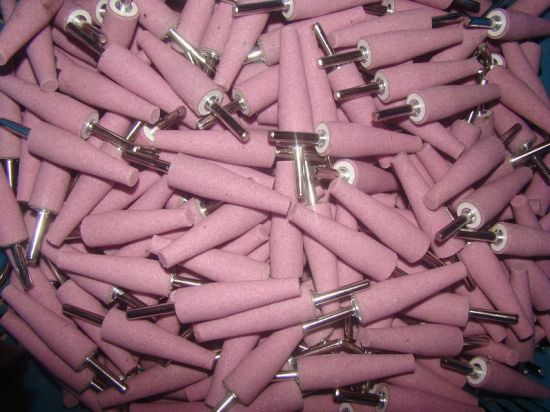

1/2" X 2" X 1/4" Shank W189 Shape Charger 30 Grit Mounted Point Abrasive
GC ABRASIVES
68042210
1,000 Pieces
Shanghai, China
50, 000, 000PCS/Month
L/C, T/T, D/P, Western Union, Paypal
Standard Package suit for long sea - voyage

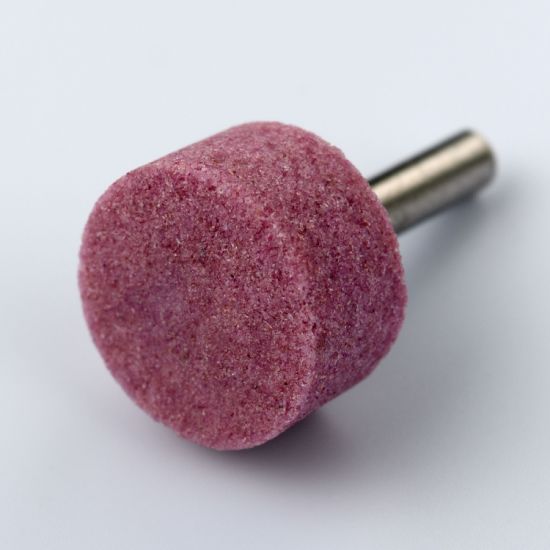

GC Abrasives mounted points are top-notch grinding tools with a long service life and high removal rates.
To ensure you are using the appropriate grinding tool or mounted point for rough grinding or finish grinding, we offer a range of mounted points in different shapes, dimensions and qualities (with vitrified or resin bond). Our mounted points are designed for grinding most different materials (steel, steel castings, tool steels, cast iron, aluminium alloys, titanium and nickel alloys, plastics, glass, ceramics…).
INGLAU mounted points are for example used as grinding tools for economic and effective rough grinding, fine grinding, weld preparation, weld smoothing or deburring.
Mounted Points are capable of reaching places inaccessible to larger types of Grinding Wheels. It can be used safely on hi-speed portable grinding machines.
Sterling's Mounted Points are available in various abrasives to suit every need of the end user.
| Shape No. | Wheel Diameter | Wheel Thickness | 1/2" Overhang | 1" Overhang |
| A1 | 3/4 | 2-1/2 | 19,800 | 61,500 |
| A2 | 1 | 1-1/4 | 32,420 | 26,190 |
| A3 | 1 | 2-3/4 | 15,530 | 11,940 |
| A4 | 1-1/4 | 1-1/4 | 28,550 | 23,150 |
| A5 | 3/4 | 1-1/8 | 38,550 | 31,270 |
| A6 | 3/4 | 1-1/8 | 38,550 | 29,700 |
| A11 | 7/8 | 2 | 19,860 | 15,100 |
| A12 | 11/16 | 1-1/4 | 38,050 | 30,790 |
| A13 | 1-1/8 | 1-1/8 | 31,850 | 25,810 |
| A14 | 11/16 | 7/8 | 43,440 | 35,510 |
| A15 | 1/4 | 1-1/16 | 50,510 | 41,470 |
| A21 | 1 | 1 | 34,500 | 26,250 |
| A22 | 3/4 | 5/8 | 46,120 | 37,960 |
| A23 | 3/4 | 1 | 39,370 | 30,370 |
| A24 | 1/4 | 3/4 | 56,000 | 46,400 |
| A25 | 1 | 1 | 35,620 | 27,370 |
| A26 | 5/8 | 5/8 | 48,980 | 40,410 |
| A31 | 1-3/8 | 1 | 27,780 | 23,970 |
| A32 | 1 | 5/8 | 38,200 | 33,480 |
| A33 | 1 | 1/2 | 38,200 | 35,460 |
| A34 | 1-1/2 | 3/8 | 25,470 | 25,470 |
| A35 | 1 | 3/8 | 38,200 | 38,030 |
| A36 | 1-5/8 | 3/8 | 23,510 | 23,510 |
| A37 | 1-1/4 | 1/4 | 30,560 | 30,560 |
| A38 | 1 | 1 | 34,500 | 26,250 |
| A39 | 3/4 | 3/4 | 44,030 | 35,250 |
| A40 | 3/4 | 3/4 | 44,030 | 35,250 |
GC Abrasives mounted points are top-notch grinding tools with a long service life and high removal rates.
To ensure you are using the appropriate grinding tool or mounted point for rough grinding or finish grinding, we offer a range of mounted points in different shapes, dimensions and qualities (with vitrified or resin bond). Our mounted points are designed for grinding most different materials (steel, steel castings, tool steels, cast iron, aluminium alloys, titanium and nickel alloys, plastics, glass, ceramics…).
INGLAU mounted points are for example used as grinding tools for economic and effective rough grinding, fine grinding, weld preparation, weld smoothing or deburring.
Mounted Points are capable of reaching places inaccessible to larger types of Grinding Wheels. It can be used safely on hi-speed portable grinding machines.
Sterling's Mounted Points are available in various abrasives to suit every need of the end user.
| Shape No. | Wheel Diameter | Wheel Thickness | 1/2" Overhang | 1" Overhang |
| A1 | 3/4 | 2-1/2 | 19,800 | 61,500 |
| A2 | 1 | 1-1/4 | 32,420 | 26,190 |
| A3 | 1 | 2-3/4 | 15,530 | 11,940 |
| A4 | 1-1/4 | 1-1/4 | 28,550 | 23,150 |
| A5 | 3/4 | 1-1/8 | 38,550 | 31,270 |
| A6 | 3/4 | 1-1/8 | 38,550 | 29,700 |
| A11 | 7/8 | 2 | 19,860 | 15,100 |
| A12 | 11/16 | 1-1/4 | 38,050 | 30,790 |
| A13 | 1-1/8 | 1-1/8 | 31,850 | 25,810 |
| A14 | 11/16 | 7/8 | 43,440 | 35,510 |
| A15 | 1/4 | 1-1/16 | 50,510 | 41,470 |
| A21 | 1 | 1 | 34,500 | 26,250 |
| A22 | 3/4 | 5/8 | 46,120 | 37,960 |
| A23 | 3/4 | 1 | 39,370 | 30,370 |
| A24 | 1/4 | 3/4 | 56,000 | 46,400 |
| A25 | 1 | 1 | 35,620 | 27,370 |
| A26 | 5/8 | 5/8 | 48,980 | 40,410 |
| A31 | 1-3/8 | 1 | 27,780 | 23,970 |
| A32 | 1 | 5/8 | 38,200 | 33,480 |
| A33 | 1 | 1/2 | 38,200 | 35,460 |
| A34 | 1-1/2 | 3/8 | 25,470 | 25,470 |
| A35 | 1 | 3/8 | 38,200 | 38,030 |
| A36 | 1-5/8 | 3/8 | 23,510 | 23,510 |
| A37 | 1-1/4 | 1/4 | 30,560 | 30,560 |
| A38 | 1 | 1 | 34,500 | 26,250 |
| A39 | 3/4 | 3/4 | 44,030 | 35,250 |
| A40 | 3/4 | 3/4 | 44,030 | 35,250 |
